HC4112 12-Wheel Hi-CapacityRake

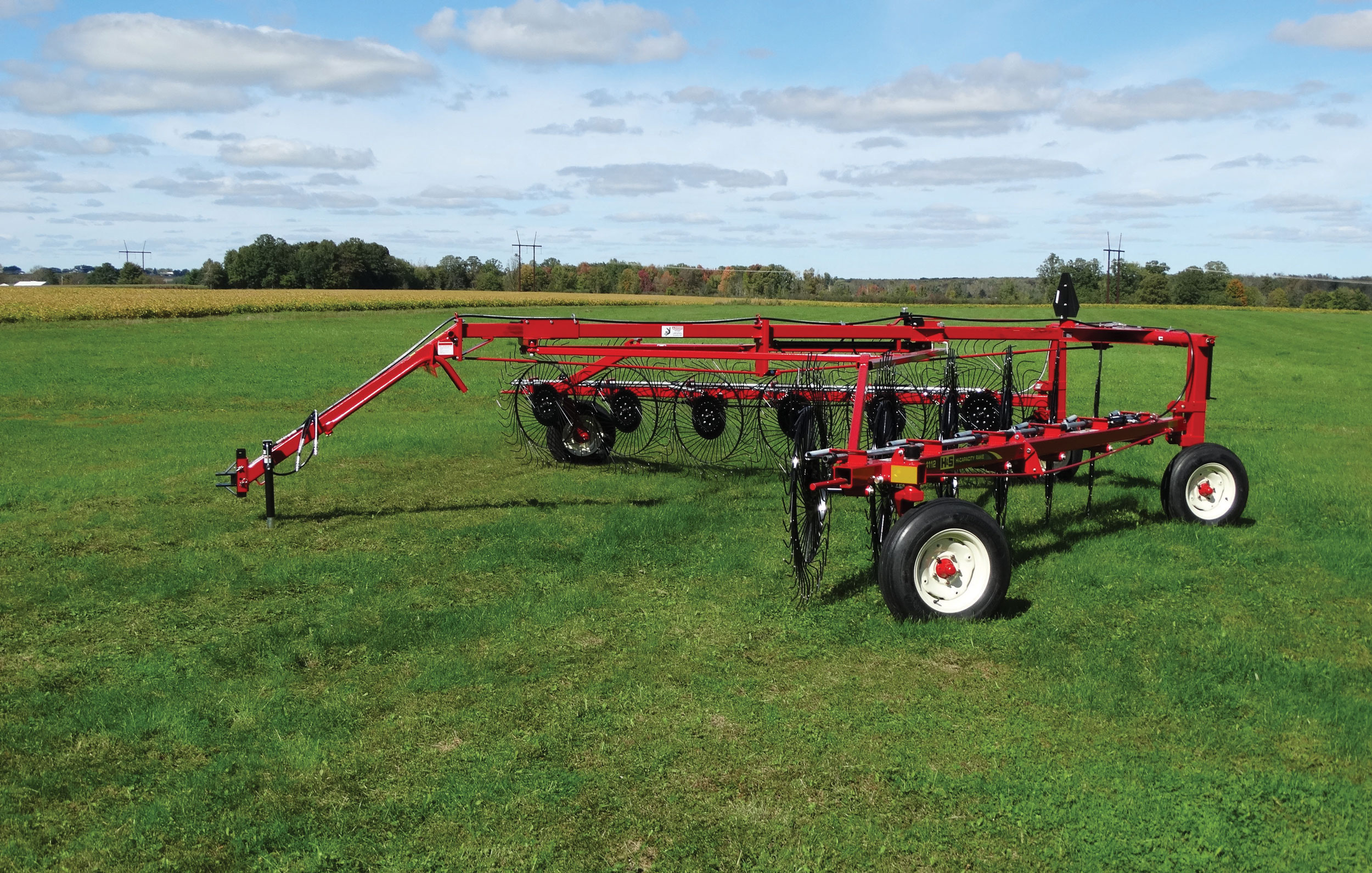

Find a Dealer H&S 4112 hi-capacity 12-wheel rake open in a field
  • 3' Up, 3' Down Independent Rake Beams
  • No Hang-up Points or Restrictions
  • 55" Diameter Rake Wheels w/Rake Arm Bearings
  • Adjustable Caster Wheel Brake Bands

Features

  • The H&S HC4112 HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams, and transport wheels.
  • With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
  • The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
  • Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
  • Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 24′
  • The HI-CAPACITY rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
  • The HC4112 folds up to 8′ 6″ or less with the touch of a lever for road transport or to go through gates.
  • A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine tune the rake to fit varying conditions.
  • An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.

Specifications

 HC4112HC4114
 HC4112HC4114
Number of Wheels1214
Wheel Diameter55″55″
Teeth Per Wheel4040
Tooth Diameter7 mm7 mm
Rake Wheel HubsTapered BearingsBall Bearings
 HC4112HC4114
Transport Width8′ 6″8′ 6″
Transport Length24′ 6″27′ 3″
Windrow Width Adjustment38″ - 58″38″ - 58″
Raking WidthUp to 24′ Hyd. SetUp to 28′ Hyd. Set
Wing Flex3′ Up or Down3′ Up or Down
 HC4112HC4114
Number of Transport Wheels46
JackStandardStandard
Transport Wheels15″15″
 HC4112HC4114
Weight3,500 lbs.3,800 lbs.

Options

  • 2-Wheel Center Kicker Assembly w/Hydraulic Lift

  • 55″ Rake Wheel Wind Panel Kit - (1) required per wheel

  • Rear Tandem w/6.70 x 15 Tires/Rims

  • Highway Lighting Kit

  • 10,100# Safety Chain
