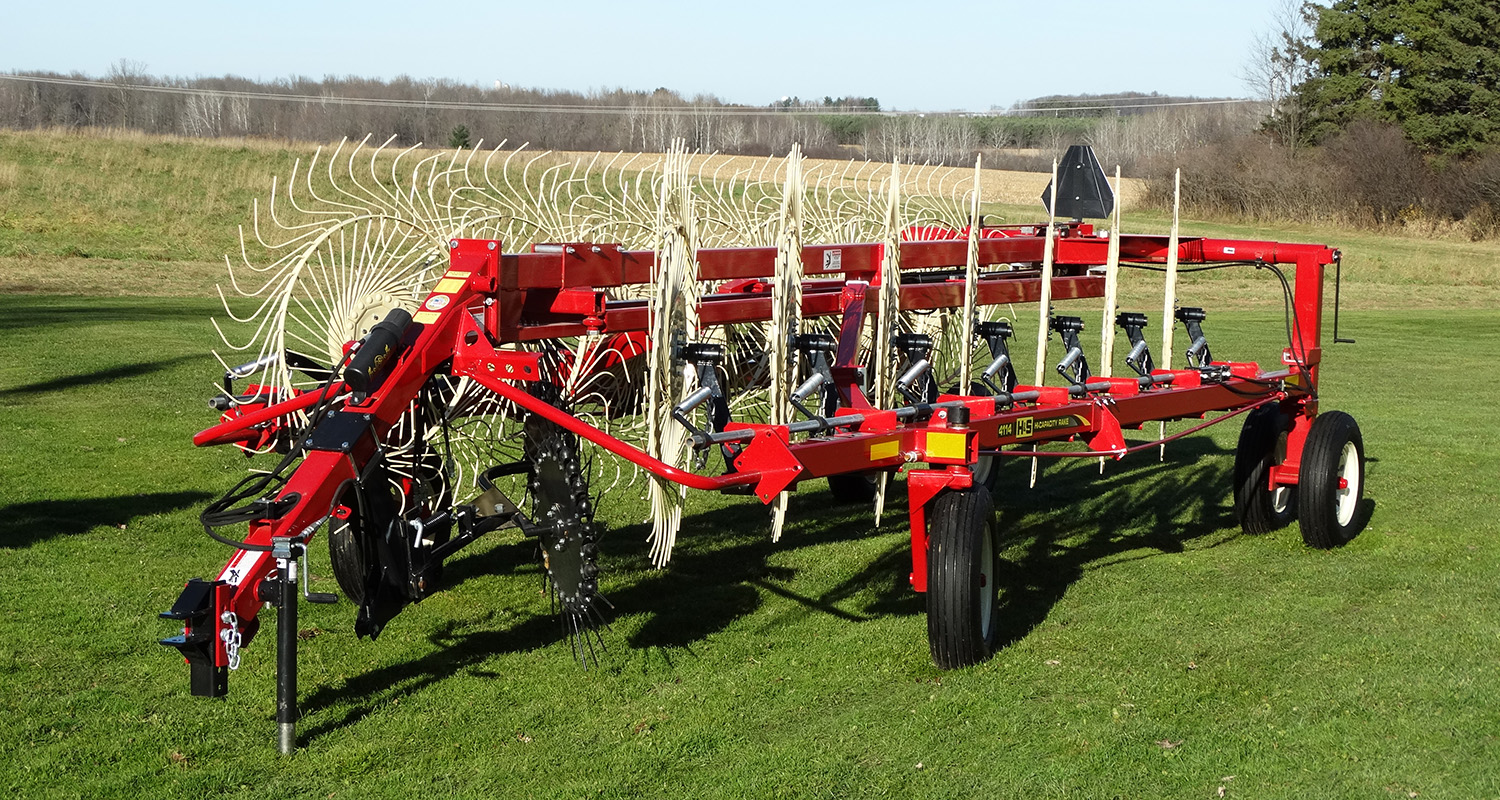

HC4114 14-Wheel Hi-CapacityRake

Find a Dealer H&S 4114 14-wheel rake in field
  • 3' Up, 3' Down Independent Rake Beams
  • No Hang-up Points or Restrictions
  • 55" Diameter Rake Wheels w/Rake Arm Bearings
  • Oscillating Offset Tandems

Features

  • The H&S HC4114 HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels.
  • With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
  • The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
  • Rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
  • Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
  • A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine-tune the rake to fit varying conditions.
  • An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.
  • Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
  • Rear limited oscillating offset tandem transport wheels ensure a smooth, level ride, even over irrigation tracks.
  • Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 28′.



Specifications

 HC4112HC4114
 HC4112HC4114
Number of Wheels1214
Wheel Diameter55″55″
Teeth Per Wheel4040
Tooth Diameter7 mm7 mm
 HC4112HC4114
Transport Width8′ 6″8′ 6″
Transport Length24′ 6″27′ 3″
Windrow Width Adjustment38″ - 58″38″ - 58″
Raking WidthUp to 24′ Hyd. SetUp to 28′ Hyd. Set
Wing Flex3′ Up or Down3′ Up or Down
Weight3,500 lbs.3,800 lbs.
 HC4112HC4114
Rake Wheel HubsTapered BearingsBall Bearings
Number of Transport Wheels46
JackStandardStandard
Transport Wheels15″15″

Options

  • 2-Wheel Add-On Kit (for converting to a 16-wheel Rake)

  • (2) Rake Beam Supports w/15″ Tires/Rims (for improved flotation over irrigation tracks)

  • 2-Wheel Center Kicker Assembly w/Hydraulic Lift

  • Highway Lighting Kit

  • 55″ Rake Wheel Wind Panel Kit - (1) required per wheel

  • 10,100# Safety Chain
