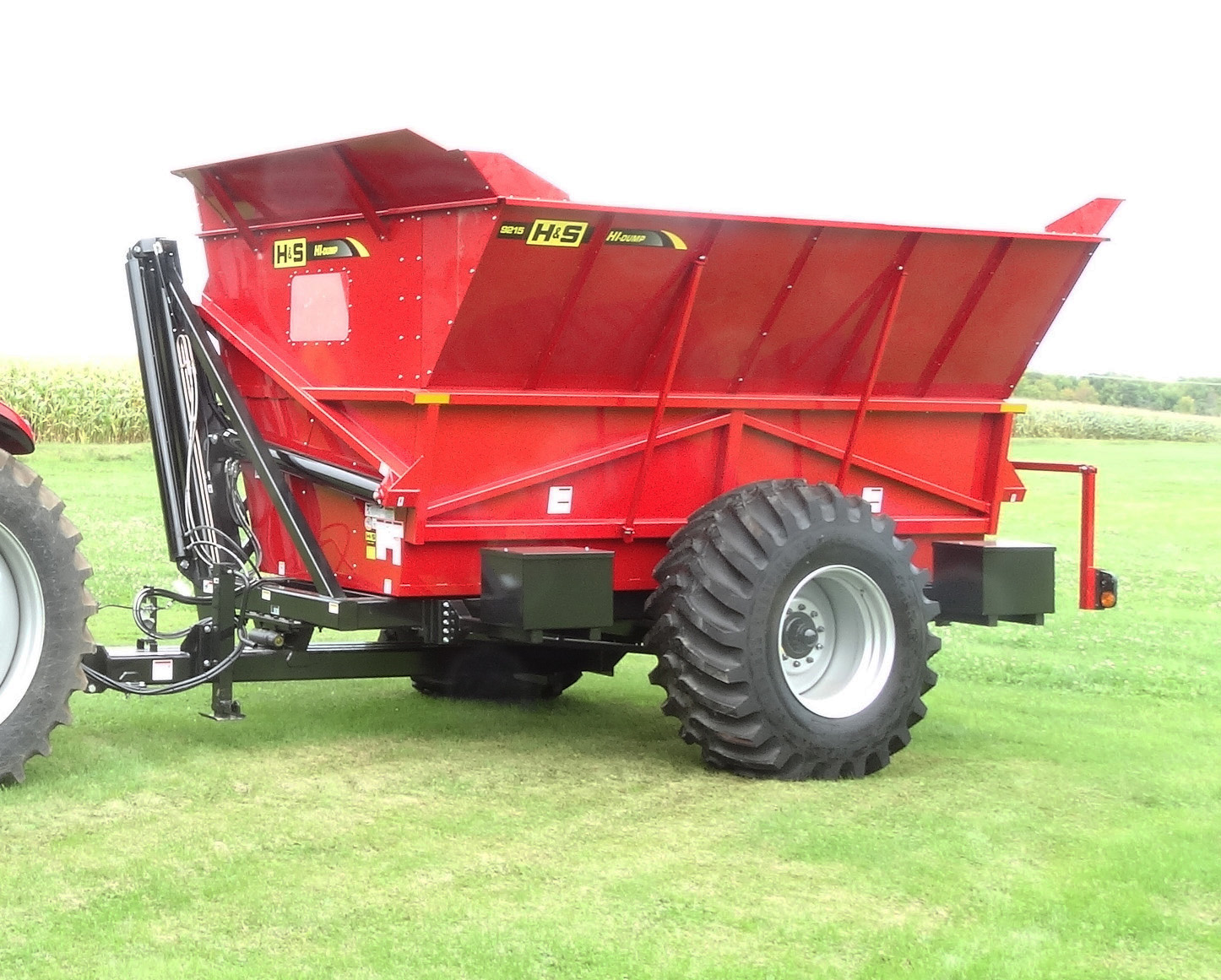

HDB9215 15' Loadmaster XHi-Dump Box

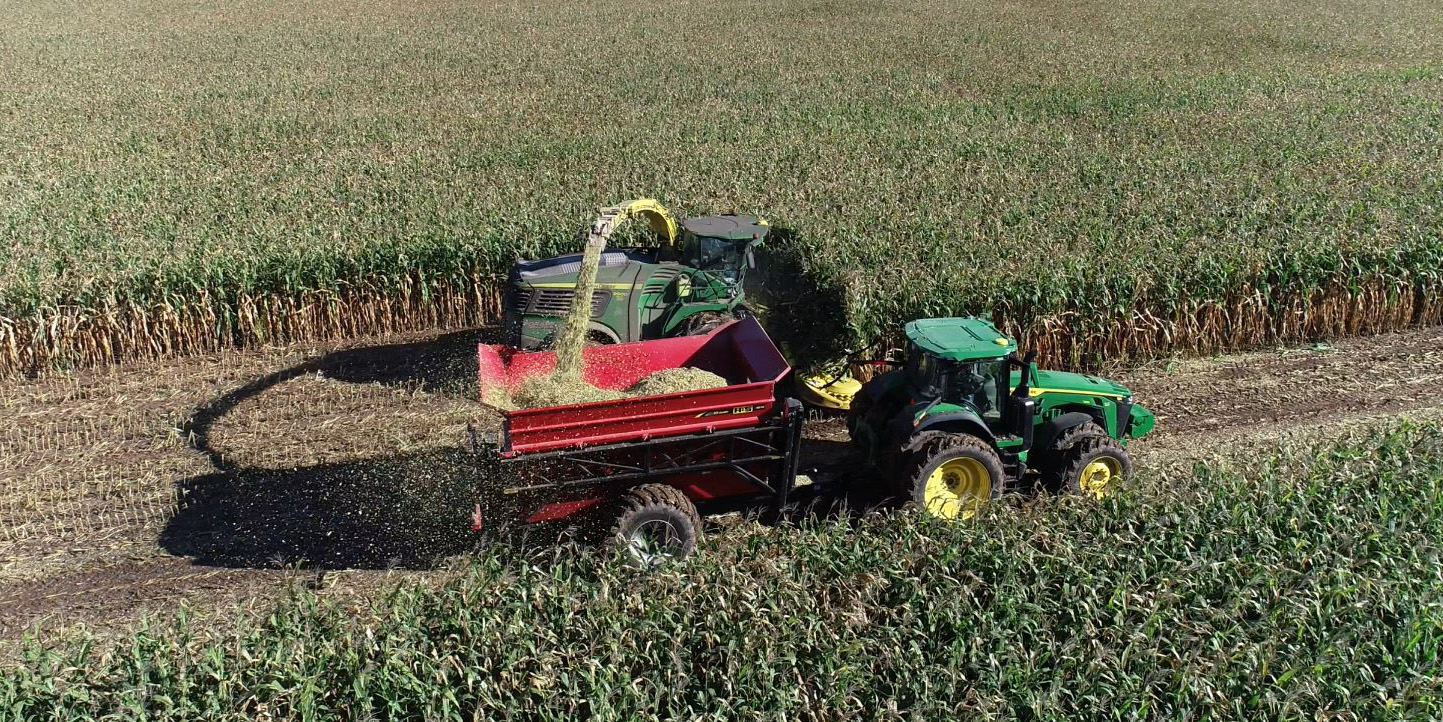

Find a Dealer H&S HDB9215 Loadmaster X dump cart in a field
  • Lift & Dump Approximately 30,000 lb. of Product
  • Variable Dumping Height
  • 25,400# Oil Bath Hubs
  • Highway Lighting w/Beacon

Features

  • Combination 10- and 12-gauge steel tub construction.
  • Heavy gusseted and reinforced box-style frame.
  • With a GVWR rating of approximately 45,000 lbs., and an empty box weight of around 15,000 lbs., the HDB9215 is capable of lifting and dumping approximately 30,000 lbs. of product.
  • The variable dumping height gives you more versatility at harvest time.
  • The ENTIRE dumping cycle takes approximately two minutes depending on hydraulic supply output.
  • The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a full dump cycle.
  • Right-hand dump has a 47-degree dumping angle.
  • (1) 27” x 16” sight windows and (2) tub access panels.
  • Highway lighting w/beacon.
  • Adjustable height single clevis swivel hitch.
  • Telescoping/adjustable length pole.
  • Heavy-duty 4½” spindles.
  • Rear tow hooks.
  • 12,000# jack.
  • Safety chain.

Specifications

 HDB9215
 HDB9215
Cubic Ft. Capacity Struck Level w/o Ext.863
Cubic Ft. Capacity Struck Level w/ Ext.1,129
 HDB9215
Inside Length of Box/Boxes180” (15’)
Inside Width of Box/Boxes - Bottom/Top65”/136” (5’ 5”/11’ 4”)
Depth of Box/Boxes89” (7’ 5”)
Overall Length Min./Max w/ Pole Adjustment304”/328” (25’ 4”/27’ 4”)
Overall Width158” (13’ 2”)
Shipping Width (top slide to hub cap)143” (11’ 11”)
Loading Height130” (10’ 10”)
Shipping Height117” (9’ 9”)
Maximum Ground Clearance15” (1’ 3”)
Shipping Weight w/ Tires15,243 lbs.
 HDB9215
Maximum Dump Lip Clearance31” (2’ 7”)
Minimum Dump Height116” (9’ 8”)
Maximum Dump Height184” (15’ 4”)
 HDB9215
Tread Width121” (10’ 1”)
 HDB9215
Spindle Size4.5"
Tires27" x 32" 10-Bolt w/30.5 x 32 R1 16 Ply
Jack12,000 lbs
HitchAdjustable Height Clevis Swivel Hitch
 HDB9215
Front Lift Cylinder (size/length on each box)5.5” x 72”
Rear Lift Cylinder (size/length on each box)4.75” x 72”
Dump Cylinders (size/length on each box)5” x 71.25”

Options

  • 18' Dumping Lip Extension

  • Two Weight Boxes with Brackets

  • One Weight Bracket for Suitcase Weights with Hardware (Up to Two per Box)

  • Ten Suitcase Weights
