S3127 146.35 Cu. Ft. Struck Per ASAE S324.2 Heavy-DutyManure Spreader

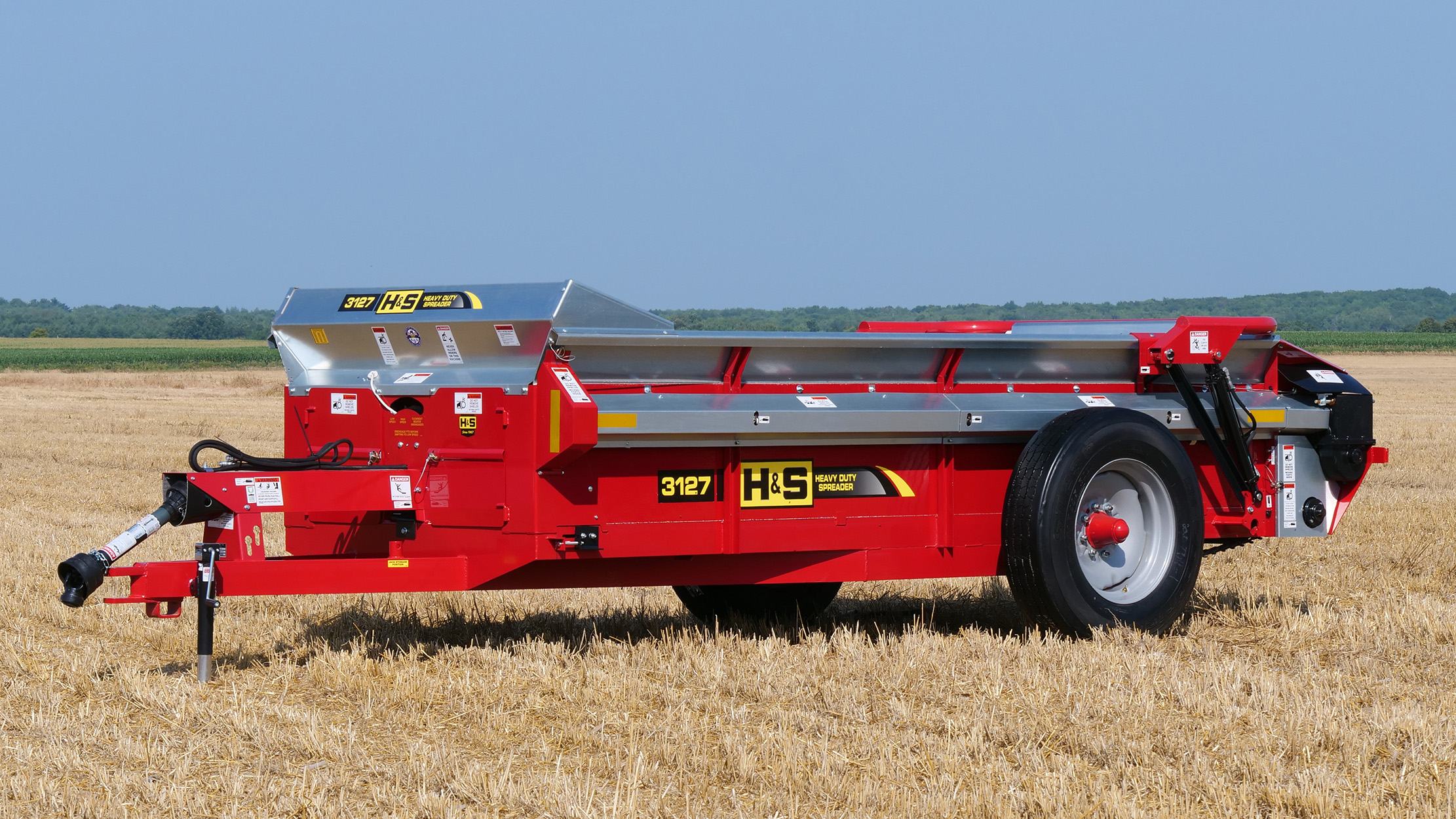

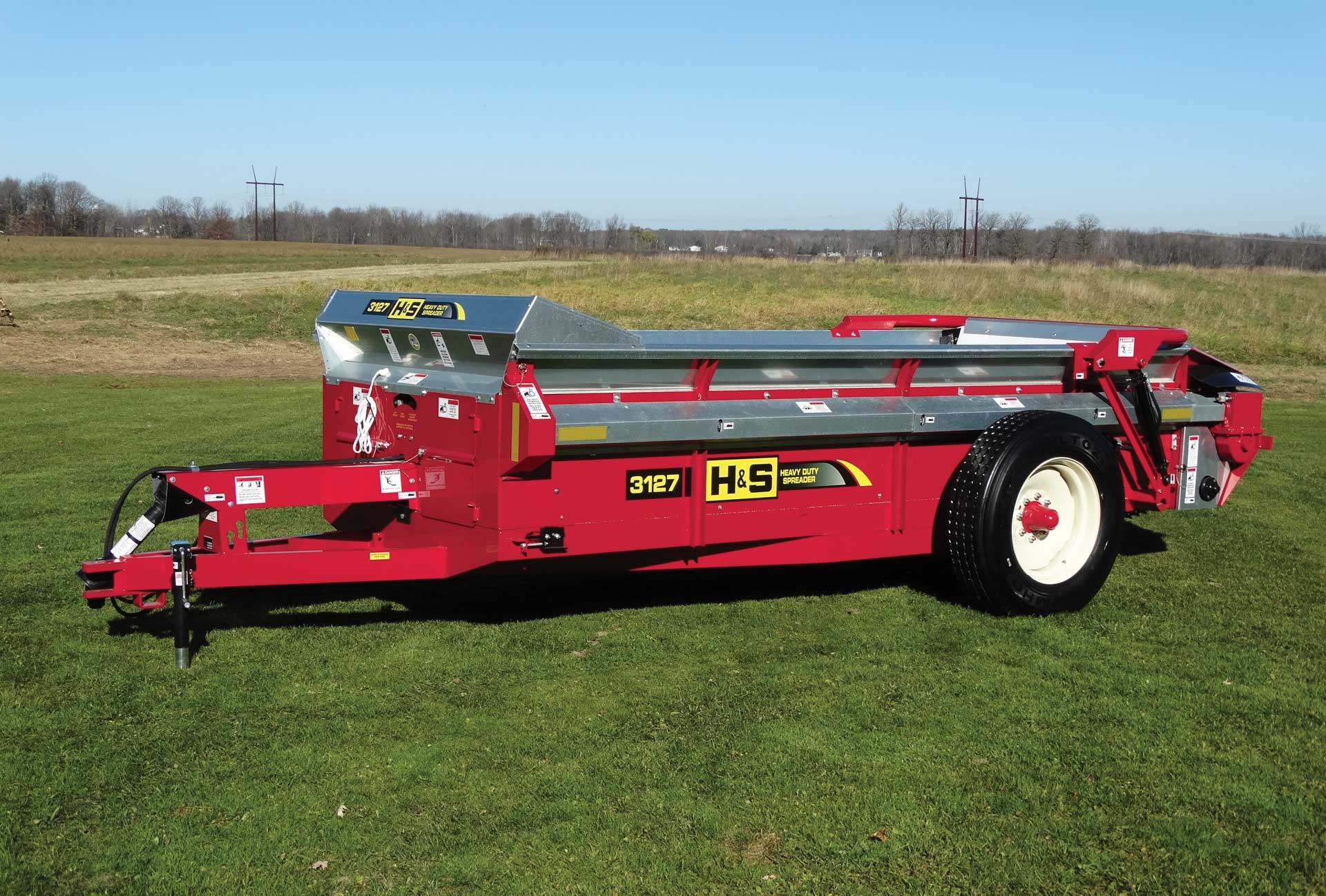

Find a Dealer H&S 3127 heavy duty manure spreader in a field with jack down
  • Heavy 5" Channel Iron Frame
  • Polybonded Floor
  • Enclosed 2-Speed Gearbox w/Beater Shut-off
  • Hydraulic Endgate

Features



  • The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
  • Strong rear main beater side panels are slanted for clearance and wider spread and then welded to the strong 5″ U-channel side members. Compares with any on the market.
  • The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
  • Sides, front panel, and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
  • The plastic-coated plywood floor allows for considerably less torque to move a heavy load.
  • The drive utilizes the patented H&S two-speed gearbox. Shifting is all done in the enclosed two speed/beater shutoff gearbox.
  • The 29″ diameter beater has two styles of replaceable beater paddles. Half of the 14 beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater-side wiper blades are also standard equipment.
  • The hydraulic endgate features a single cylinder with the hydraulic lines running through a 3″ x 3″ tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
  • Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
  • Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
  • PTO Apron Low Speed/540 RPMs: 4′ 9″ per minute.
  • PTO Apron High Speed/540 RPMs: 8′ 9″ per minute
  • A front splash guard is standard equipment.
  • Greaseable bearings

Specifications

 S3123S3127S3231S3237SW3243
 S3123S3127S3231S3237SW3243
Capacity - Old Rating235 bu270 bu310 bu370 bu430 bu
Capacity Cu. Ft. Struck Level Per ASAE S324.2122.04146.35164.58215.68260.59
Capacity Cu. Ft. Heaped Per ASAE S324.2209.89252.46284.39344.38386.22
 S3123S3127S3231S3237SW3243
Top of Flare Width68″ (173 cm)68″ (173 cm)68″ (173 cm)68″ (173 cm)68″ (173 cm)
Inside Width60″ (152 cm)60″ (152 cm)60″ (152 cm)60″ (152 cm)60″ (152 cm)
Inside Length11' 4" (3.45 m)13' 4" (4.06 m)14' 10" (4.52 m)16' (4.88 m)16' (4.88 m)
Inside Depth28 ⅜″ (72 cm)28 ⅜″ (72 cm)28 ⅜″ (72 cm)34 ⅜″ (87 cm)40 ⅜″ (102 cm)
Overall Width w/Standard Tires94 ½″ (240 cm)94 ½″ (240 cm)98″ (249 cm)98″ (249 cm)112″ (285 cm)
Overall Length18′ 6″ (5.7 m)20′ 5 ½″ (6.3 m)21′ 11 ½″ (6.7 m)23′ 2 ½″ (7.1 m)23′ 2 ½″ (7.1 m)
Overall Loading Height-Top Of Side51 ½″ (131 cm)51 ½″ (131 cm)51 ½″ (131 cm)57 ½″ (1.5 m)63″ (160 cm)
Overall Height w/Hyd. Endgate55″ (139.7 cm)55″ (139.7 cm)55″ (139.7 cm)61″ (154.9 cm)63 ½″ (161.3 cm)
 S3123S3127S3231S3237SW3243
Diameter Of Beater29″ (74 cm)29″ (74 cm)29″ (74 cm)29″ (74 cm)29″ (74 cm)
Main Apron ChainT-RodT-RodT-RodT-RodT-Rod
Spindle Size2″ (5 cm)2 ½″ (6 cm)2 ¼″ (6 cm)2 ½″ (6 cm)2 ½″ (6 cm)
Standard Tire Size295 × 22.5 Recap295 × 22.5 Recap295 × 22.5 Recap295 × 22.5 Recap16.5 × 16.1 Flotation
 S3123S3127S3231S3237SW3243
Weight w/Tires2,890 lbs. (1,311 kg)3,230 lbs. (1,495 kg)4,190 lbs. (1,901 kg)4,920 lbs. (2,232 kg)5,500 lbs. (2,495 kg)
 S3123S3127S3231S3237SW3243
Rear Hydraulic EndgateStandardStandardStandardStandardStandard
JackStandardStandardStandardStandardStandard
Drive2-Speed2-Speed2-Speed2-Speed2-Speed
Front Splash PanelStandardStandardStandardStandardStandard
Hyd. Cyl On Hyd. Endgate1 - Standard | 2 - Optional1 - Standard | 2 - Optional1 - Standard | 2 - Optional22
PTO Speed540540540 - Standard | 1000 - Optional540 - Standard | 1000 - Optional540 - Standard | 1000 - Optional
 S3123S3127S3231S3237SW3243
Upper BeaterOptionalOptionalOptionalOptionalStandard

Options

H&S heavy duty manure spreader optional top beater

Top Beater

An optional top beater provides load leveling and spreading of high heaped loads.

closeup of H&S 3127 heavy-duty manure spreader hydraulic endgate cylinder

Hydraulic Endgate Cylinder

An optional second hydraulic endgate cylinder is available. The hydraulic lines are run through a 3" x 3" tube under the floor. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.

H&S heavy duty manure spreader rear pan closeup

Rear Pan

A rear pan is optional to create a finer spread pattern.

closeup of H&S 3127 heavy-duty manure spreader wheel

16.5x16.1 Tires/Wheels/Spindles/Hubs

Highway Lighting Kit

16,100# Safety Chain
