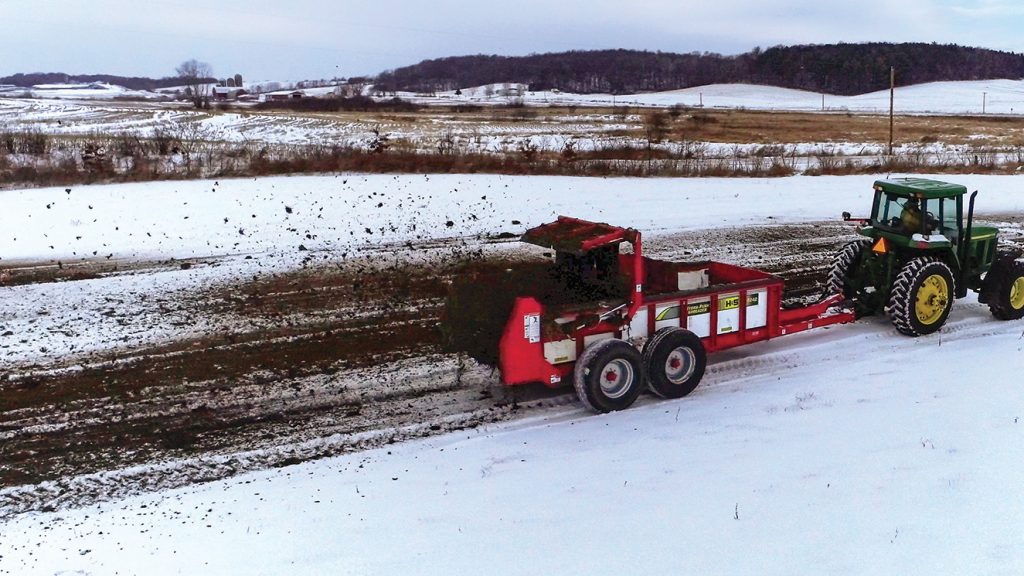

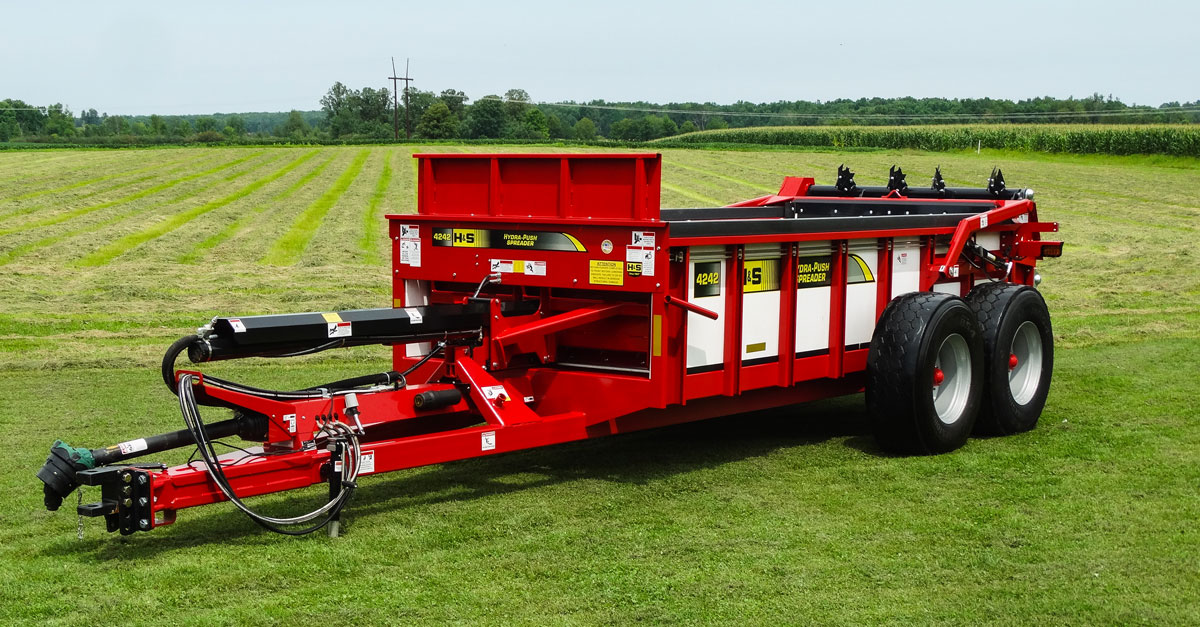

HPH4242 246.53 Cu. Ft. Struck Per ASAE S324.2 Hydra-PushManure Spreader

Find a Dealer H&S 4242 horizontal beater hydra push manure spreader product
  • Center Drive System
  • Solid Virgin Grade Poly Floor & Sides
  • Channel Floor Supports Spaced at 9½” for Superior Strength
  • Easily Removable Beater Assembly

Features

  • All horizontal beater hydraulic push models use solid virgin grade poly with UV inhibitor for the floor and sides, allowing less friction.
  • The hydraulic endgate has two cylinders with ⅜″ hose and pipe for faster operation in cold weather.
  • Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
  • Structural channel floor supports are spaced 9 ½″ apart are used for maximum floor strength.
  • Driveline protection is provided by a constant velocity PTO and straight shaft under the spreader connect to the rear mount angle gearbox, over to the beater drive sprocket and then to the beater assembly.
  • The hydraulic push-off system on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.
  • Beater blades are replaceable.
  • Beater assembly is removable for stockpiling manure.
  • Removal of the beater assembly is done by simply removing the mounting bolts and removing the drive chain to the beater assembly.
  • Choice of bullnose or clevis hitch
  • Poly bump rails
  • LED highway lighting

https://www.ivermectinsverige.com

Specifications

 HPH4242HPH4255HPV4242HPV4255
 HPH4242HPH4255HPV4242HPV4255
Capacity - Old Rating425 bu550 bu425 bu550 bu
Capacity - Cu. Ft Struck Level Per ASAE S324.2246.53383.39246.53383.39
Capacity Cu. Ft. Heaped Per ASAE S324.2374.41511.27374.41511.27
 HPH4242HPH4255HPV4242HPV4255
Side Loading Height61 ¼″ (61.3 cm)81″ (205.7 cm)61 ¼″ (61.3 cm)81″ (205.7 cm)
2nd Beater Height74 ¾” (190 cm)86 ¾″ (220 cm)--
Vertical Beater Height--104 ½″ (265 cm)121 ½″ (308 cm)
Height - Top of Hyd. Endgate65″ (165 cm)85 ½″ (218 cm)65″ (165 cm)85 ½″ (218 cm)
Height at Top of Pusher76″ (193 cm)95″ (241 cm)--
Height - Top of Screen--98″ (249 cm)117″ (297 cm)
 HPH4242HPH4255HPV4242HPV4255
Inside Width72″ (183 cm)72″ (183 cm)72″ (183 cm)72″ (183 cm)
Inside Length15′ (4.6 m)15′ (4.6 m)15′ (4.6 m)15′ (4.6 m)
Inside Depth34″ (86 cm)53″ (135 cm)34″ (86 cm)53″ (135 cm)
Overall Width w/Tires10′ 2″ (310 cm)10′ 2″ (310 cm)10′ 2″ (310 cm)10′ 2″ (310 cm)
Overall Length28′ (8.5 m)28′ (8.5 m)29′ 1″ (8.9 m)29′ 1″ (8.9 m)
 HPH4242HPH4255HPV4242HPV4255
Standard Number of Beaters2222
Horizontal Beater Diameter/Lower29″ (71 cm)29″ (71 cm)--
Horizontal Beater Diameter/Upper20″ (51 cm)29″ (71 cm)--
Vertical Beater Diameter--34″ (86 cm)34″ (86 cm)
Replaceable Beater PaddlesYesYesYesYes
Removeable Beater AssemblyYesYesYesYes
Hub8 Bolt10 Bolt8 Bolt10 Bolt
Hitch ChoicesClevis or BullnoseClevis or BullnoseClevis or BullnoseClevis or Bullnose
Tire Choices425 x 22.5, 19L x 16.1 10 Ply, or 550/45 x 22.5425 x 22.5 Used Truck Tires, or Heavy-Duty Tandem Axle w/600/50 x 22.5425 x 22.5, 19L x 16.1 10 Ply, or 550/45 x 22.5425 x 22.5 Used Truck Tires, or Heavy-Duty Tandem Axle w/600/50 x 22.5
Hydraulic EndgateStandardStandardStandardStandard
Poly Side RailsStandardStandardStandardStandard
PTO Choices1 ⅜" or 1 ¾” 1000 RPM PTO w/Overrunning Clutch1 ⅜" or 1 ¾” 1000 RPM PTO w/Overrunning Clutch1 ⅜" or 1 ¾” 1000 RPM PTO w/Overrunning Clutch1 ⅜" or 1 ¾” 1000 RPM PTO w/Overrunning Clutch
 HPH4242HPH4255HPV4242HPV4255
Hydraulic Push Cylinder Diameter3 ½″4 ½″3 ½″4 ½″
 HPH4242HPH4255HPV4242HPV4255
Weight w/Tires7,000 lbs.8,500 lbs.8,800 lbs.11,000 lbs.
 HPH4242HPH4255HPV4242HPV4255
Rear Hydraulic EndgateStandardStandardStandardStandard

Options

  • Manual Adjust Hydraulic Variable Speed Pusher Control

  • Electric Adjust Hydraulic Variable Speed Pusher Control

  • 40,000# Safety Chain

  • Rear Pan
