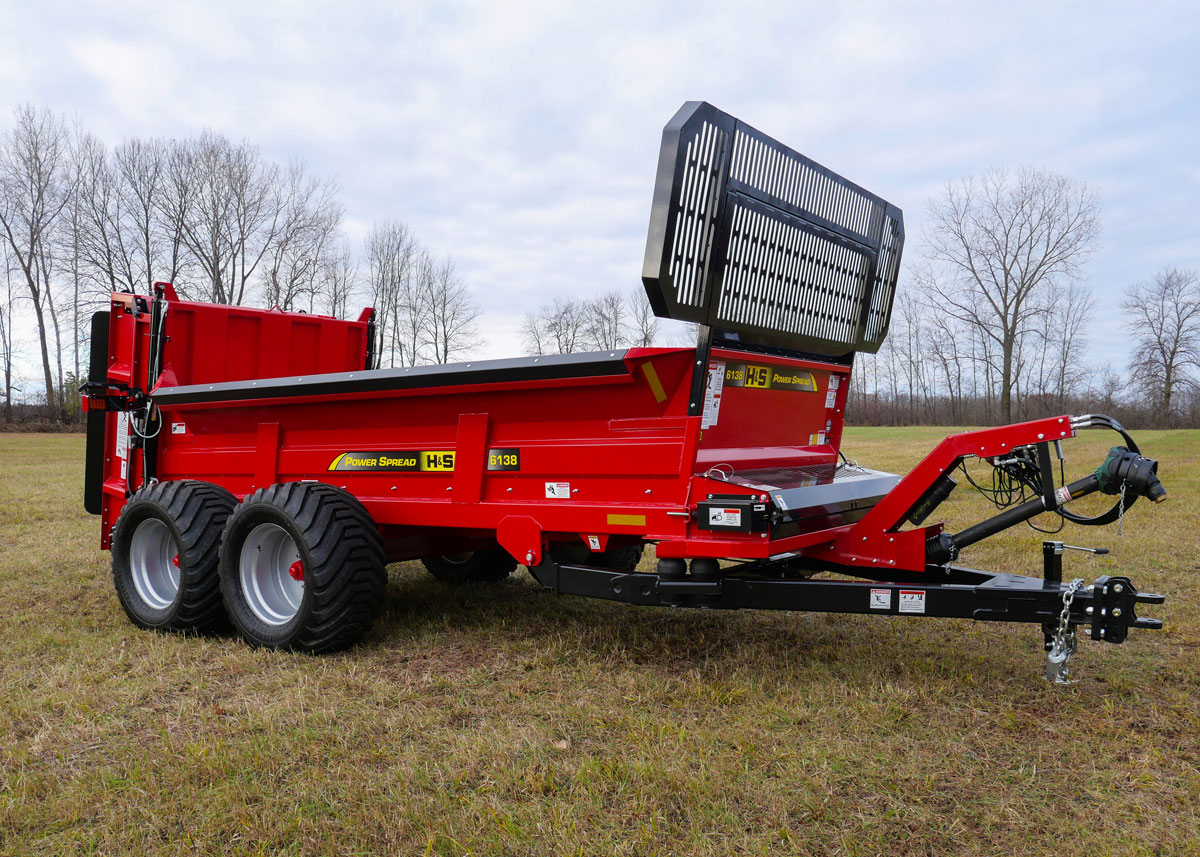

PS6138 237 Cu. Ft. Struck Per ASAE S324.2 PowerSpreadManure Spreader

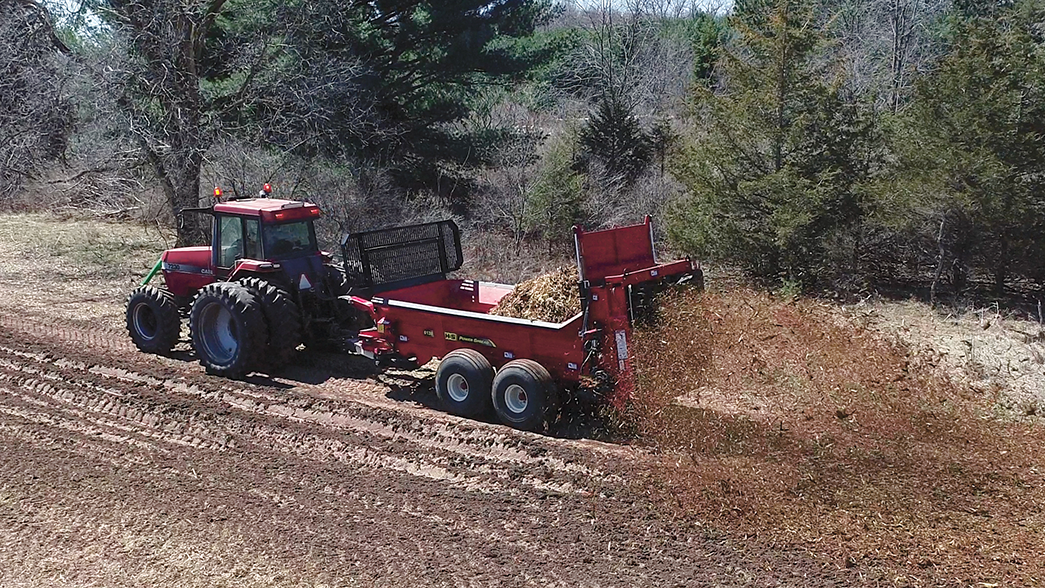

Find a Dealer H&S 6138 PowerSpread manure spreader spreading onto a field
  • Heavy-Duty Monobloc Beater & Apron Drive Gearboxes
  • 5/8" Marine Grade Main Apron Log Chain
  • 1/2" Beater Flighting w/Replaceable Beater Paddles
  • Constant Velocity PTO

Features

  • 373 cu ft heaped capacity per ASAE S324.2
  • A center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
  • Dual hydraulic cylinder guillotine/metering style endgate
  • Patented reverse flighting creates a more even spread pattern.
  • 1/2″ thick vertical beater flighting
  • 5/8″ marine log chain apron featuring a limited lifetime warranty.
  • 2″ x 3″ x 1/4″ heavy tubular apron slats
  • Replaceable beater blades
  • Removable beater assembly allows for stockpiling manure.
  • Constant velocity PTO
  • Poly side load bump rails
  • LED highway lighting

Specifications

 PS6138PS6180
 PS6138PS6180
Capacity – Heaped Bushel Per S324.2300638
Capacity - Cu. Ft Struck Level Per ASAE S324.2237578
Capacity Cu. Ft. Heaped Per ASAE S324.2373.34793
Capacity - Heaped Bushel Per S324.1N/A764
 PS6138PS6180
Side Loading Height67″ (170.2 cm)94.75″ (240.7 cm)
Vertical Beater Height98″ (248.9 cm)132″ (335.3 cm)
Height - Top of Hyd. Endgate98.38″ (249.9 cm)127″ (322.6 cm)
 PS6138PS6180
Inside Width73″ (185.4 cm)78.75″ (200 cm)
Inside Width - Top of Flare95″ (241.3 cm)96″ (243.8 cm)
Inside Depth30″ (76.2 cm)52.5″ (133.4 cm)
Overall Width w/Tires121″ (307.3 cm)169″ (429.3 cm)
Overall Length297″ (7.5 m)393″ (9.98 m)
Inside Length177″ / (4.5 m)235.5″ (3.44 m)
 PS6138PS6180
Standard Number of Beaters22
Vertical Beater Diameter34″ (86.4 cm)39″ (99 cm)
Replaceable Beater PaddlesYesYes
Removeable Beater AssemblyYesYes
Apron Chain Size5/8″ Grade 803/4″ Grade 80
Hub8,000 lbs.25,000 lbs. Rating Ea.
Spindle Size3″ (7.6 cm)4.5″ (11.43 cm)
Tire Size425 × 22.5, 19L x 16.1, 550/45 × 22.5700/50 x 26.5
Cylinders on Endgate22
Poly Bump RailsStandardStandard
PTO ChoicesChoice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant VelocityChoice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Hydraulic EndgateHydraulic Guillotine/Metering StyleHydraulic Guillotine/Metering Style
 PS6138PS6180
JackCrankChoice of Crank or Hydraulic
 PS6138PS6180
Weight w/Tires9,400 lbs.21,768 lbs.
 PS6138PS6180
Spread Pattern - Approximate25’ – 30’ dependent on the weight of material25’ – 30’ dependent on the weight of material

Options

closeup of H&S 6138 PowerSpread manure spreader rubber spring suspension

Rubber Spring Suspension Package

Available to help cushion your load while traveling through the field for a smoother ride in the tractor while also preventing unnecessary wear on the hitch and pole.

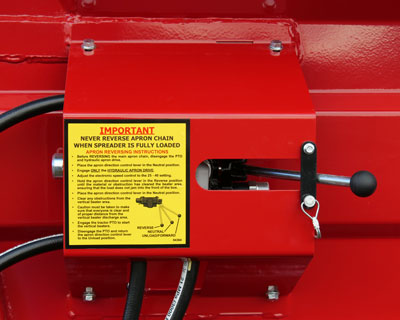

closeup of H&S 6138 PowerSpread manure spreader main apron reverser valve

Main Apron Reverser Valve Package

This option allows you to reverse the load away from the beater assembly if a foreign object should come in contact with the beaters.

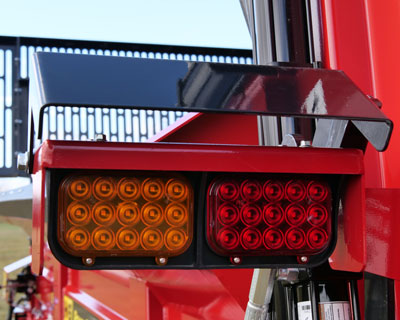

closeup of H&S 6138 PowerSpread manure spreader actuator light covers

Hydraulic Actuator Light Covers

Light covers close when the guillotine/metering-style endgate is raised for spreading. Keeps lights clean for road travel.

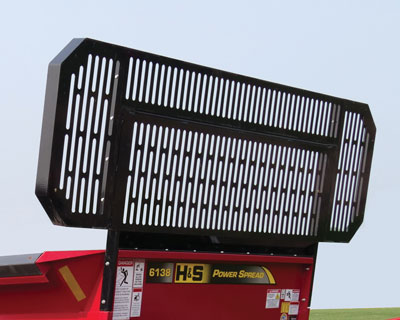

closeup of H&S 6138 PowerSpread manure spreader with fit around screen extension

Fit-Around Screen Extension

Adds an extra 18" left and right and an extra foot above to help protect the tractor and operator.

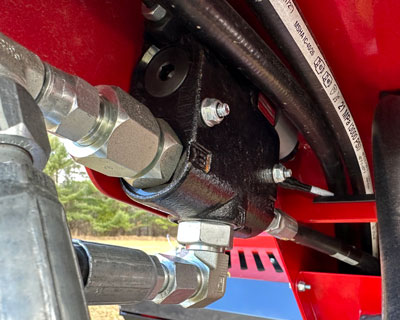

close up H&S 6138 PowerSpread manure spreader speed apron control

Electric Adjust / Manual Hydraulic Variable Speed Apron Control
