RM7117 - 135-Bushel RollerMixer

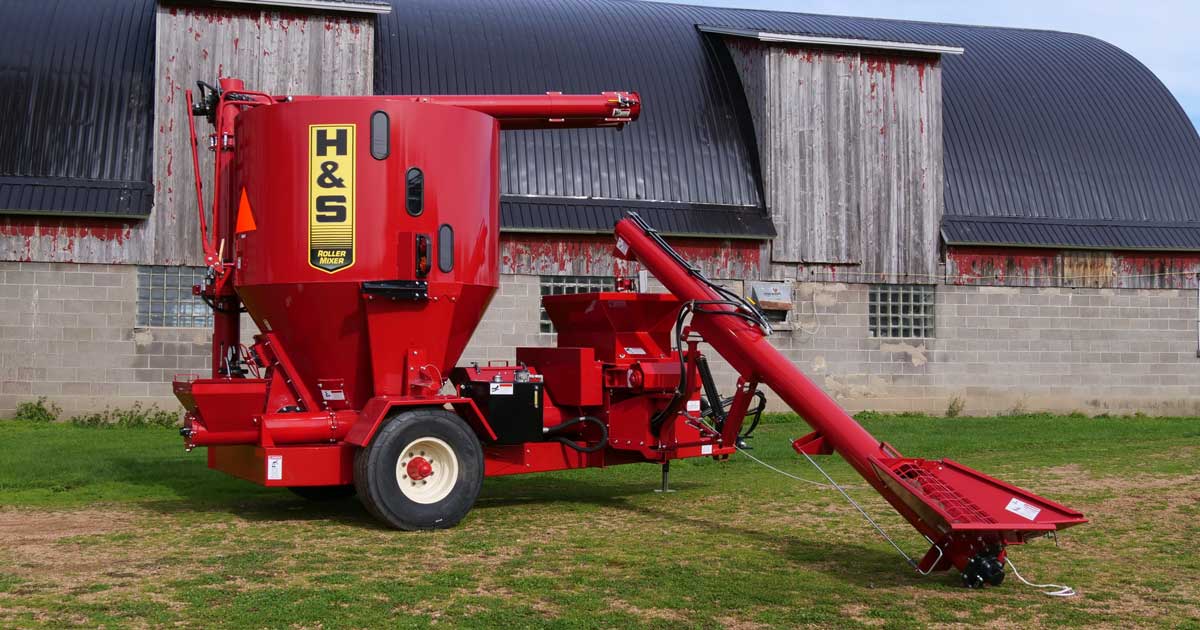

Find a Dealer H&S 7117 Roller Mixer in front of barn product
  • 167 Cubic Ft. Capacity
  • Self-contained Hydraulic System
  • 18" High-Capacity Roller Mill w/16" Rolls
  • Scale Ready

Features

  • The self-contained hydraulic system includes a pulley-driven pump and a 15-gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
  • Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
  • The 240-degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
  • Mixer drive systems are shear bolt protected.
  • A large discharge door provides high-capacity unloading.
  • Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
  • 5-porthole windows allow the operator to see feed levels.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • Mixers feature a side mounted supplement hopper.
  • Transport lights are standard equipment.

Specifications

 RM7117
 RM7117
Tank Capacity - Bushel135
Tank Capacity - Cubic Ft.167
 RM7117
Tank Diameter74"
Overall Height10′ 8″
Overall Width8' 6" w/o Auger Feeder
Overall Length15′
Ground Clearance12″
 RM7117
Diameter of Mixing Auger14″ Diameter w/30″ Base
LadderFoldable Rear Mount Non-Slip
Tank Windows5-Port Hole Style
Supplement HopperSide Mounted
FeederGravity Hopper
Tires12.5L – 15 – 20 Ply
JackStandard
 RM7117
PTO Drive540 RPM
H.P. Requirement540 RPM up to 125 HP
 RM7117
Unloading Auger Tube Diameter8″
Unloading Auger Length12′
Unloading Auger Rotation240 Degrees
Unloading Auger Reach StandardApprox. 19′ at 53 Degrees
Unloading Auger w/3' ExtensionApprox. 21′ 6″ at 53 Degrees
Unloading Auger w/6' ExtensionApprox. 23′ 10″ at 53 Degrees
 RM7117
Self-ContainedIncludes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve
Pump Pressure3,200 PSI Maximum
Oil Flow12 GPM
 RM7117
Rolls(2) 18″ Width x 16 Diameter Chill Cast Rolls
Roll Drive540 RPM Direct
Grooves Per Inch (GPI)Choice of 4, 5, 6, 8, 10, 12 or 15 GPI Rolls
Roll ProtectionLeaf Spring
MagnetsTop Hopper w/Grate Magnet

Options

  • 8' Conventional Swinging Intake Auger

  • Rear Supplement Hopper

  • Digi-Star 2500 Scale

  • Digi-Star 3410 Scale

  • 3' Folding Extension

  • 6' Folding Extension

  • 30,000# Safety Chain
