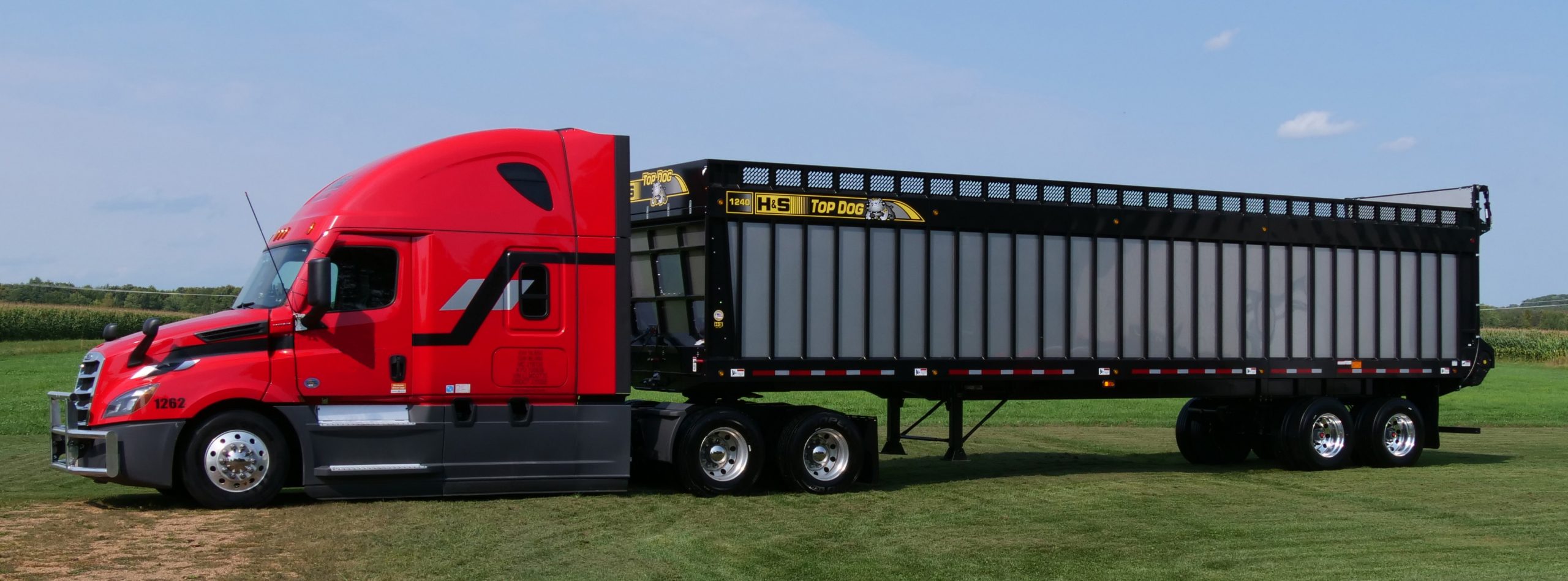

TD1240 - 40' Top Dog Semi-TrailerForage Box

Find a Dealer H&S 1240 top dog forage box rear unload semi mounted product
  • Full-Length Frame
  • Heavy-Duty Dual Drive Gearboxes
  • PL88C Open Barrel Main Apron Chain
  • 16-Gauge Stainless Steel Sides

Features

  • The main frame is made of high-quality formed steel 10″ I-beams for the rear and continuing full length at 5″ under the 5th wheel area.
  • New 25,000# spring axles w/heavy-duty spindles are standard.
  • 16-gauge stainless steel sides
  • The PL88C open barrel main apron pintle chain at 29,900# per strand stays flexible.
  • 2″ x 1″ x 3/16″ formed apron channels are used for the apron cross bars.
  • The floor is ½″ thick virgin grade solid poly.
  • The TOP DOG features 1″ steel lines to the dual hydraulic motors at the rear of the box.
  • The dual hydraulic motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
  • The driveshaft features MD nylon reversible-style bearings.
  • Panels above the front & rear wheels act as a chain slide for the main apron and protect mud and debris from getting to the apron chain.
  • 3 large front windows for viewing when unloading
  • The idler apron shaft assembly features 6-tooth machined steel sprockets with bronze idler bushings.
  • Adjustable spring-loaded tighteners on the front main apron idler shafts maintain tension on the apron during start-up and operation.
  • Choice of a top pivot door with gate delay system and door locks, or barn doors with air closure.
  • LED lighting is standard equipment
  • Customer farm name – NO CHARGE!

Specifications

 TD1236TD1240
 TD1236TD1240
Capacity Cu. Ft. Struck Level Per ASAE S324.22,0452,275
 TD1236TD1240
Box Weight18,240 lbs.20,270 lbs.
Inside Length36′40′
Inside Width98″98″
Inside Height86″86″
Overall Length37′ 7″41′ 7″
Overall Width102″102″
Overall Height Including Tailgate13′13' 1 1/2"
Side Height147"147"
 TD1236TD1240
Drive SystemDual Hydraulic MotorsDual Hydraulic Motors
Final Drive SystemDual Gear Case Drive SystemDual Gear Case Drive System
Main Apron Chain & SlatsPL88C Open Barrel Pintle 2″ x 1″ x 3/16″ Formed Apron ChannelsPL88C Open Barrel Pintle 2″ x 1″ x 3/16″ Formed Apron Channels
Unload TimeDependent on Tractor/Truck Hydraulic System & GPMsDependent on Tractor/Truck Hydraulic System & GPMs
 TD1236TD1240
Rear Drive Shaft2 ¼″ 1045 Steel2 ¼″ 1045 Steel
Front Idler Shaft1 ¾″ 1045 Steel1 ¾″ 1045 Steel
Uprights2″ x 2″ x 3/16″ Tubular Steel Set on 16″ Centers2″ x 2″ x 3/16″ Tubular Steel Set on 16″ Centers
Wall MaterialStainless SteelStainless Steel
Floor MaterialVirgin Grade PolyVirgin Grade Poly
 TD1236TD1240
Air Gate Delay SystemStandardStandard
Rear Door LatchingAutomaticAutomatic
Front Viewing Windows33
LightsLEDLED
Customer Farm NameStandardStandard
 TD1236TD1240
Rear Door(s) w/Auto Lock/UnlockTop Pivot Door w/Dual Cylinder Hydraulic Gate Delay or Barn Doors w/Air Closure (Truck Mount)Top Pivot Door w/Dual Cylinder Hydraulic Gate Delay or Barn Doors w/Air Closure (Truck Mount)

Options

  • Reverse Apron System

  • Electric Actuator Control for Flip Down Front

  • Roof Hood

  • Top Pivot Door Seal Kit

  • Electric Drive Flip Tarp

  • Electric Side-to-Side Tarp

  • Air Suspension in lieu of Spring Suspension

  • Screen Filler Kit for One Side
