TF6132 - 32' Twin-FlexMerger

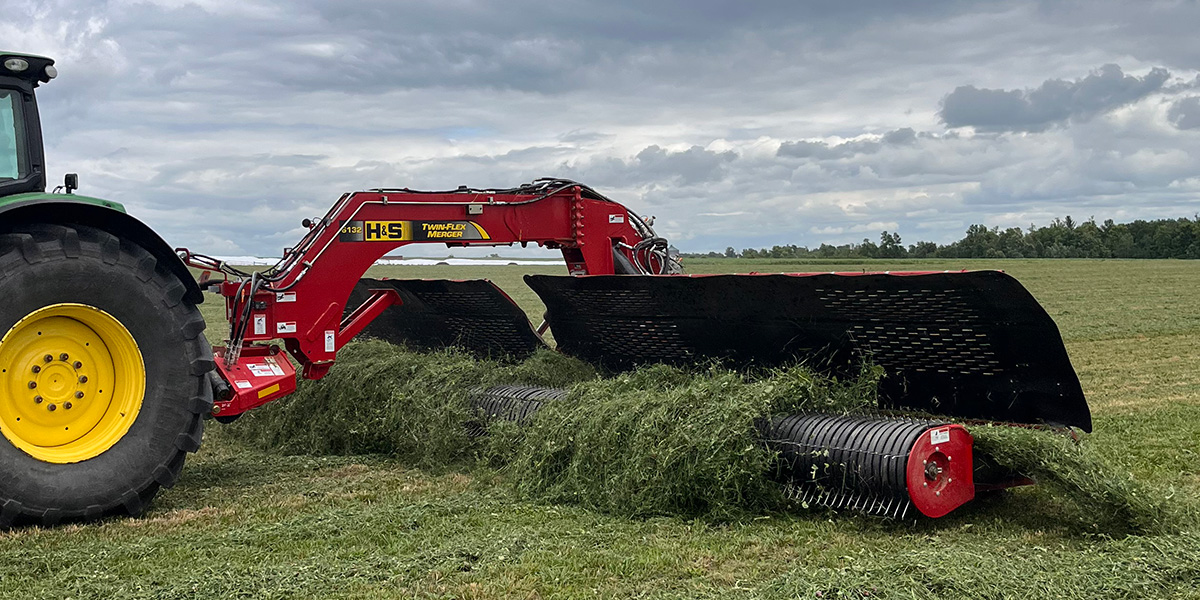

Find a Dealer H&S 6132 Twin-Flex merger merging alfalfa in a hay field
  • ISOBUS Ready
  • Steering Axle
  • Center Cam/Center Drive Design
  • Patented Soft-Shoe Suspension System

Features

  • 32’ of continuous merging – right, left or split with (2) 16’ independent heads.
  • ISOBUS ready
  • H&S patented SOFT-SHOE suspension system reduces field damage from head scuffing.
  • Patented center cam/center drive design provides smooth, clump-free windrows – NO BUNCHING!
  • WIDEST cross-conveyor belt in its class at 42″.
  • The ability to merge (7) 10′ windrows into one in either direction.
  • Self-contained hydraulic system features a 65-gallon reservoir, coupled with large displacement motors for the heads and cross conveyor, is able to handle HEAVY crops.
  • Rubber mounted teeth
  • Highest torque rated hydraulic motors in the industry, coupled with heavy 2-ply cross-conveyor belts.
  • Cross conveyor belts feature a high torque drive system – The best in the industry!
  • Heavy-duty 385/65 x 22.5 radial tires that don’t scuff in the field.

Specifications

 TF6128TF6132
 TF6128TF6132
Working Width28' 2"32'
 TF6128TF6132
Transport Width8′ 6″9' 8"
Transport Length25'24′
Transport Height9' 8"11' 6"
 TF6128TF6132
Pick-up Heads2 (14")2 (16')
Head Travel20" (10" Up & 10" Down)20" (10" Up & 10" Down)
Pick-up StrippersPolyPoly
Pick-up TeethRubber MountedRubber Mounted
Cross-Conveyor Belt Width42"42"
Cross-Conveyor On/Off/Right/Left/SplitElectric-over-Hydraulic (adjustable in-cab)ISOBUS AUX N Compatible or Optional Non-ISOBUS Control Box
Skid Shoe HeightManual AdjustHydraulic Adjust
Head SuspensionExclusive SOFT-SHOE Suspension Technology System with In-Cab AdjustExclusive SOFT-SHOE Suspension Technology System
3-Point HitchCAT II, III, or III-NCAT II, III, or III-N
 TF6128TF6132
Drive System3-Section High Volume Pump3-Section High Volume Pump
PTO1 ⅜" or 1 ¾” 1000 RPM1 ⅜" or 1 ¾” 1000 RPM
Oil Reservoir Capacity35 gal65 gal
Hydraulic Requirements2 Sets of Remotes (Requires Close Center Hydraulic System) 2,750 PSI 12 GPM Min.None - Merger is a Self-Contained System
Auto Default Right-Hand MergeStandardStandard
 TF6128TF6132
Tire Size15R x 19.5 Radial385/65 x 22.5 16 Ply Agri-Transport Floatation Implement Radial
 TF6128TF6132
Weight12,260 lbs.17,300 lbs.
 TF6128TF6132
Tractor Size95 HP Minimum150 HP Minimum/Heavy Frame

Options

  • Control Box for Non-ISOBUS Tractors
