2200 Series Action

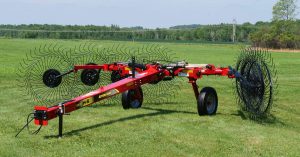

H&S 2208 8-wheel action rake product with jack down

AR2208 8-Wheel Action

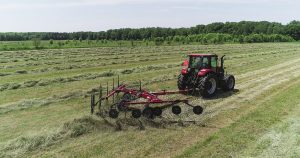

H&S 2210 10-wheel action rake raking hay in a field

AR2210 10-Wheel Action

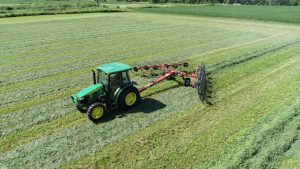

H&S 2212 12-wheel action rake raking hay in the field

AR2212 12-Wheel Action

Specifications

 AR2208AR2210AR2212
 AR2208AR2210AR2212
Number of Wheels81012
Wheel Diameter60″60″60″
Teeth Per Wheel404040
Tooth Diameter7.5 mm7.5 mm7.5 mm
Rake Wheel HubsTapered BearingsTapered BearingsTapered Bearings
Ground Pressure Rake Wheel AdjustmentAdjustable Nut on RodAdjustable Nut on RodAdjustable Nut on Rod
 AR2208AR2210AR2212
Transport Width12′12′12′
Transport Length19' 1"20′ 5″21' 3"
Raking Width16’ 6” - 17’ 8”18’ 5” – 21’21’ – 24’ 4”
Windrow Width Adjustment4’ 5” - 6’ 10”3’ 3” – 7’ 3”2’ 10” – 7’ 3”
Weight1,437 lbs.1,633 lbs.1,794 lbs.
 AR2208AR2210AR2212
Number of Raking Positions66 Narrow / 6 Wide6 Narrow / 6 Wide
Wing Cylinders2″2″2″
JackStandardStandardStandard
Tires(2) ST205/75R15(2) ST205/75R15(2) ST205/75R15
 AR2208AR2210AR2212
Required Tractor Hydraulics2 Hose / 1 Remote2 Hose / 1 Remote2 Hose / 1 Remote
Required Hydraulic PSI1,875 lbs.1,875 lbs.1,875 lbs.
